Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods

Product Categories
YIXING HUADING MACHINERY CO.,LTD.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods

Brand Name : HUADING

Certification : CE ISO

Place of Origin : Jiangsu, China

MOQ : 1 set

Price : $24,000-25,000 / set

Payment Terms : T/T,Western Union

Supply Ability : 40 set / months

Delivery Time : 60 working days

Packaging Details : Standard seaworthy package

Description : Mechanical Separation Concentration

Application : Food chemicals, Fruit and vegetable beverages

Material : Stainless Steel

Bowl weight : 50-15000 Kg

Solids holding space : 2 - 50 L

Inlet pressure : 0-0.1 Mpa

Liquid outlet pressure : 0.2-0.6 Mpa

Structure : vertic disc type

Contact Now

AI Overview
An oily water separator (OWS) separates oil from bilge water using gravity and coalescing filters to meet environmental regulations (usually <15 ppm of oil). It works in stages: gravity separation removes free oil, while coalescer filters and adsorption remove finer oil particles. The system often includes a heater and a monitor to ensure compliant water discharge.

Company Advantages
60+Years Experience
40000+Installations
100+Centrifuge Models
Huading Separator is one of the market leaders in centrifugal separating technology, with over 60 years of experience developing and manufacturing disc stack centrifuges. Our equipment is trusted by well-known manufacturers worldwide in food, pharmaceutical, and industrial applications
Centrifugal Separation Technology
The disc stack separator separates solids and one or two liquid phases from each other in one single continuous process, using extremely high centrifugal forces. When the denser solids are subjected to such forces, they are forced outwards against the rotating bowl wall, while the less dense liquid phases form concentric inner layers.
Technical Specifications
Dimensions 2000 × 1200 × 1800mm
Drive gear / belt
Bowl speed 4000 - 10000 rpm
Centrifugal force > 10,000 g
Bowl volume 8 - 300 L
Bowl weight 50-15000 Kg
Solids holding space 2 - 50 L
Inlet pressure 0-0.1 Mpa
Liquid outlet pressure 0.2-0.6 Mpa
Starting time 5 - 30 mins
Stopping time (no brakes) > 40 mins
Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods

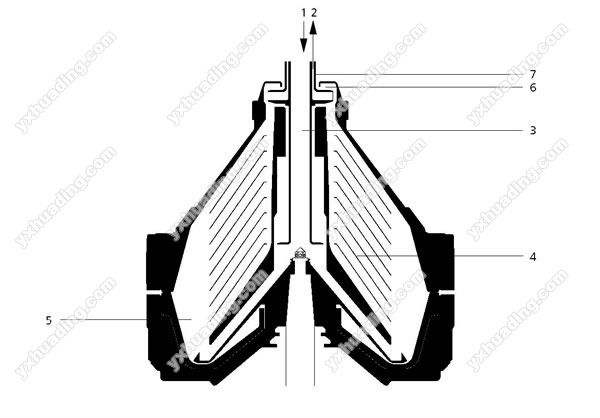

Process Components

1 Inlet tube

2 Central bore

3 Distributor

4 Distributor bore

5 Rising channels

6 Light phase centripetal pump

7 Heavy phase centripetal pump

Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods
2-Phase Separation Process
Separation takes place inside a rotating bowl. The feed is introduced to the rotating centrifuge bowl from the top via a stationary inlet pipe, and is accelerated in the distributor before entering the disc stack. The separation of liquid-solids takes place between the discs, with the liquid phase moving through the disc stack to the centre and pumped out via built-in paring disc.
Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods
3-Phase Separation Process
The suspension to be separated is fed into the separator bowl from the top through a feeding pipe and enters the disc stack. The heavy phase and heavy sludge are forced towards the periphery of the bowl, while the light phase flows towards the centre. Solids collects in the sludge space and is discharged intermittently and automatically.
Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods

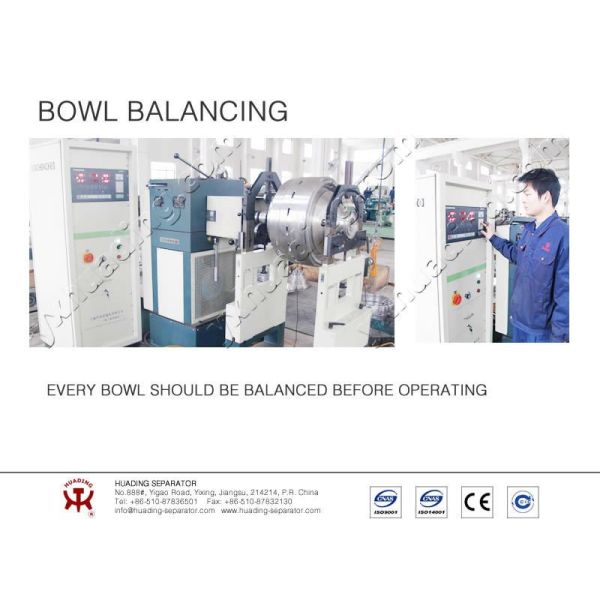

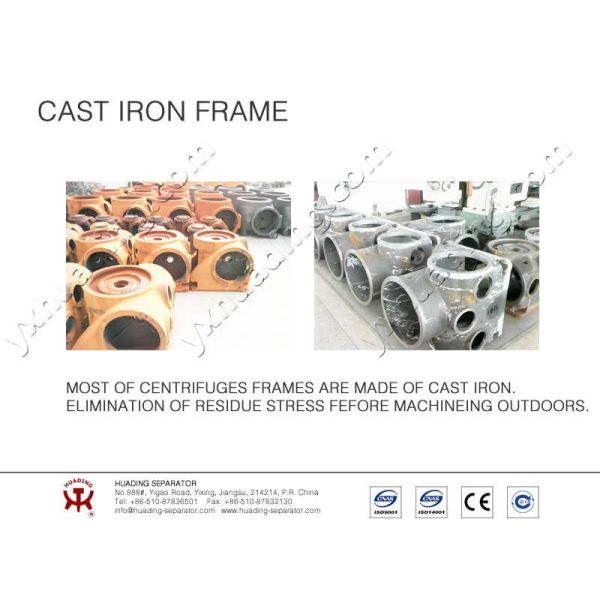

Manufacturing Excellence
Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods
Packaging & Shipping
Package: Standard export carton packing
Delivery Time: 30-90 days after confirming order (varies by production season and order quantity)
Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods

Product Tags:

industrial disc oil separator



oil water separator with gravimetric method



parallel plate disc oil separator


Buy cheap Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods product

Industrial Disc Oil Separator Designed for Effective Oil Water Separation Using Gravimetric and Parallel Plate Methods Images
